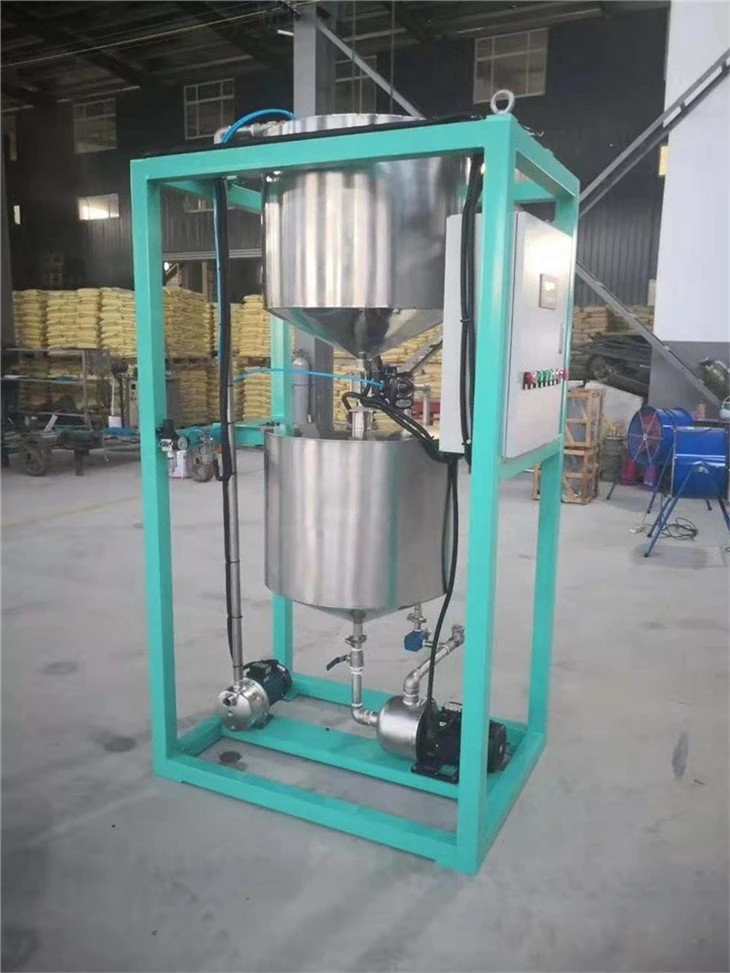

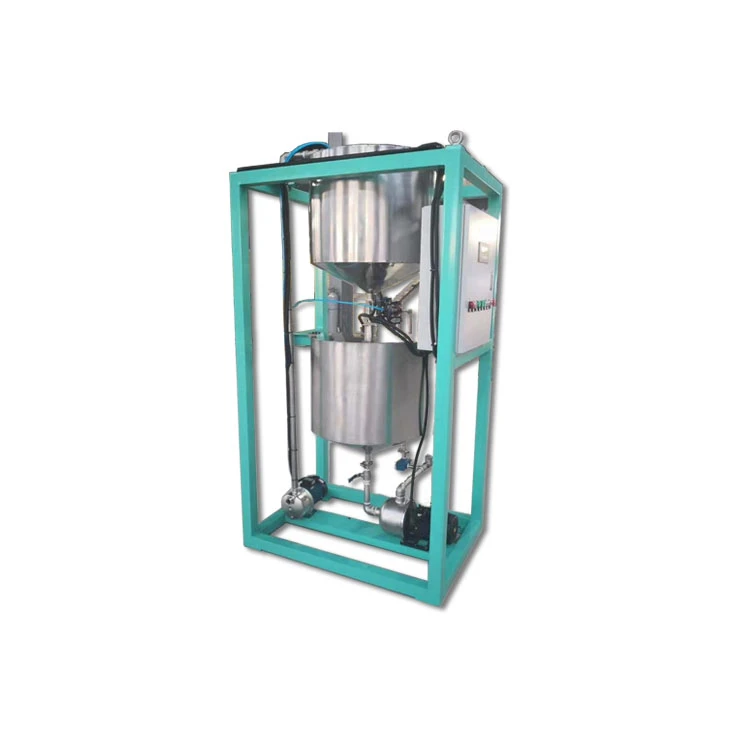

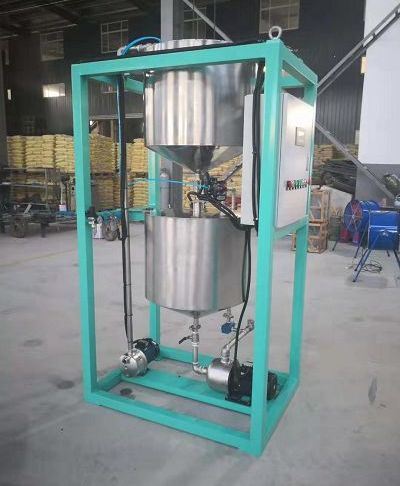

Water adding system machine/ SYTC Scale liquid adding system
Application and adaptability
SYTC series scale type liquid adding system is mainly applied to add the liquid nutritive substances such as oil, fat, molasses, phosphatide to a batch mixer.
Features
High precision measuring by a weight sensor;
Simple structure;
Automatic control and convenient for operation.
Operational conditions
Material characteristics
Liquid viscosity:
Liquid temperature: Greater than or equal to 40 degree
Physical environment
Temperature: -15-40 degree
Relative humidity: not higher than 90 percent
Altitude: not higher than 1000m
The operating voltage should be stable and its deviation is not more than ±5 percent .
Composition of model and its meanings
S Y T C =
S---- Feed Y----- Liquid T---- Adding C---- Scale type □--- Specification parameter
Technical parameters
Model | SYTC50 | SYTC100 | SYTC150 | SYTC200 |
Adding rate (Kg/min) | 50 | 100 | 150 | 200 |
Adding precision ( percent ) | 0.5 | 0.5 | 0.5 | 0.5 |
Power(Kw) | 2.2 | 3.0 | 5.5 | 5.5 |
