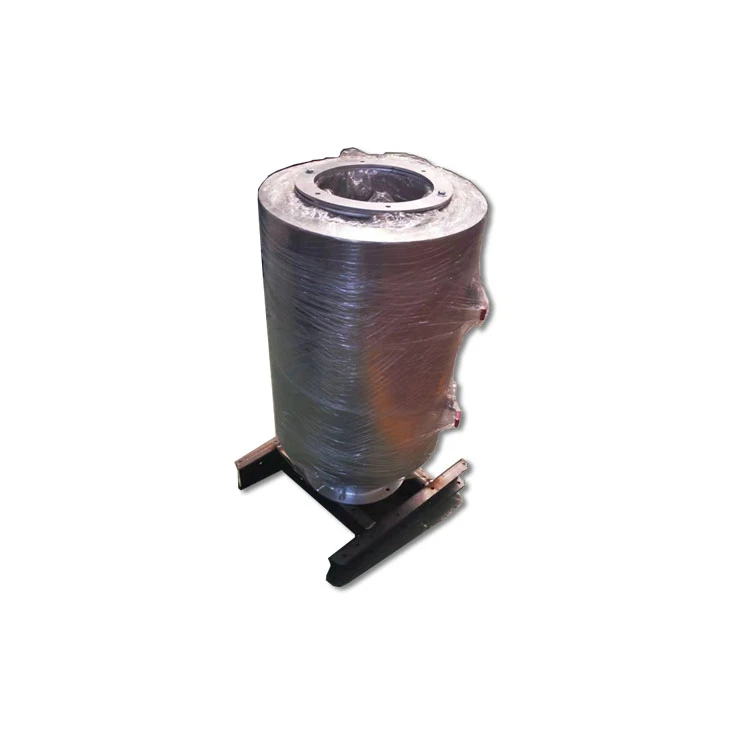

Stainless steel permanent magnet
The magnet core of this machine is made of up-to-date rare earth permanent magnet material, its magnetic induction density can reach 200-380 T (that of common magnetic separating equipment in the country is about 100 T at present), its service life can reach 6-8 years and its qualification reaches the advanced international standard. It is featured of beautiful form, high structural efficiency, no need of floor and power and so on.
Description
Powerful iron removal performance without power consumption.
Magnetic field intensity Greater than or equal to 3000GS; iron removal efficiency Greater than or equal to 99 percent .
Widely employed in the material receiving system of feed mills, grain storage facilities and etc
Main purpose and application scope
TCXT model is mainly used for separating magnetic metal impurities from the raw materials. It is suitable for feed mills, cereal and oil processing plants, solvent factories and breweries in all scales, and generally installed in the processing pipelines.
Installation
In order to prevent the machine from blockage caused by large sundries, this equipment should be installed after a preliminary cleaner.
This equipment should be installed in a vertical pipe and the height of vertical pipe section above the equipment should be Greater than or equal to 500 mm.
Because the impact action from the raw materials affects the iron absorption efficiency in certain degree, a buffer device should be set up at its upper part and the material flow rate should not be more than 1m/s.
Operation and precautions
Do not knock the permanent magnet while installing for it is relatively fragile.
Because this machine has a strong magnet field, it is forbidden to place any objects easily magnetized such as electric meters, watches and so on around it.
Technical parameters
Model | TCXT15 | TCXT20 | TCXT25 | TCXT30 | TCXT40B |
Capacity(T/h) | 10-15 | 20-30 | 35-50 | 45-70 | 80-100 |
