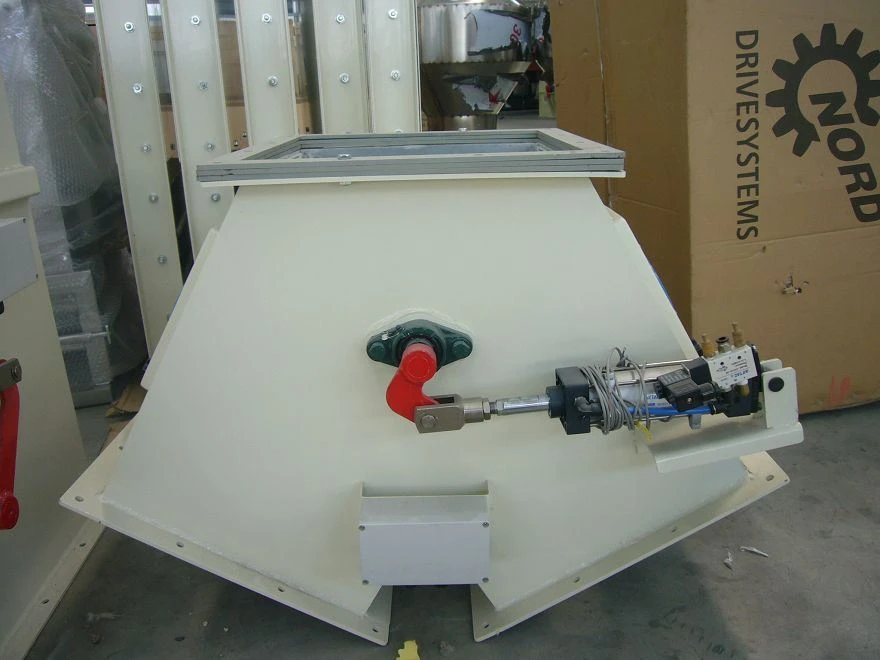

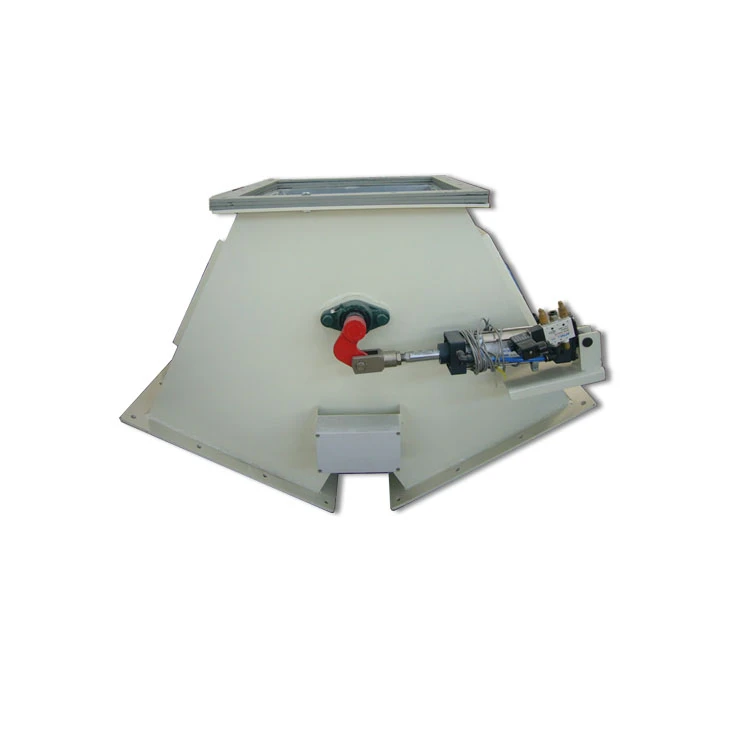

TBDD seriyali elektr to'rtburchakli o'tkazgich
Oddiy va ixcham tuzilish, oson o'rnatish
Xavfsiz va ishonchli ishlash, kam texnik xizmat ko'rsatish
30 gradus va 45 darajali nayzalar mavjud
Chiqish maydoni 100100 dan 500500 sm gacha o'zgargan2
Xavfsizlik belgilari va tavsifi
Ishlayotganda xodimlar va mashina xavfsizligini ta'minlash uchun mijozlarga eslatish uchun korpusda quyidagi xavfsizlik belgilari mavjud va barcha foydalanish qoidalariga qat'iy rioya qilish kerak.
Safety mark "Beware of injury from the machine" at inlet and outlet reminds that DO NOT start up the machine for commissioning and operation before the equipment is completely linked with the system.
Texnik parametr
Item | Pnevmatik silindrli model | Ish bosimi | Magnit kalit | Nazariy tortishish | Nazariy keskinlik | Capacity |
TBDQ2020/45 daraja | DNCB-50-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 30 |
TBDQ2020/30 daraja | DNCB-50-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 30 |
TBDQ2525/45 daraja | DNCB-50-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 50 |
TBDQ2525/30 daraja | DNCB-50-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 50 |
TBDQ3030/45 daraja | DNCB-50-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 100 |
TBDQ3030/30 daraja | DNCB-50-200-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1178 | 990 | 100 |
TBDQ4040/45 daraja | DNCB-63-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 300 |
TBDQ5050/45 daraja | DNCB-63-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 500 |
TBDQ6060/45 daraja | DNCB-63-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 1870 | 1682 | 700 |
TBDQ8080/45 daraja | DNCB-80-250-PPV-A | 0.6-12 | SM1-8-K2.5-E | 3016 | 2721 | 1000 |
Eslatma:yuqoridagi nazariy surish va nazariy taranglik 6 bar atmosfera bosimida hisoblanadi.
